Wastegate VCDS: How to Set Up Your Turbocharger Correctly?

Wastegate Vcds adjustment is crucial for optimal turbocharger performance; CAR-CODING.EDU.VN offers expert remote support to ensure accuracy and prevent costly errors. Need help with wastegate adaptation, DTC clearing, or ECU programming? Our skilled technicians provide safe and efficient solutions, supporting a wide range of vehicles.

1. What is a Wastegate and Why is VCDS Important?

A wastegate is a crucial component in a turbocharged engine. It controls the boost pressure by allowing exhaust gases to bypass the turbine wheel, preventing overboost. VCDS (Vag-Com Diagnostic System) is a diagnostic tool used extensively for Volkswagen Audi Group (VAG) vehicles (Volkswagen, Audi, Skoda, and SEAT). It allows you to read diagnostic trouble codes (DTCs), perform adaptations, and monitor various engine parameters, including those related to the wastegate.

1.1. How Does a Wastegate Work?

A wastegate regulates the maximum boost pressure of a turbocharger. When the boost pressure reaches a predetermined level, the wastegate opens, diverting exhaust gases away from the turbine. This prevents the turbocharger from spinning faster and producing excessive boost, which can damage the engine.

1.2. Why is VCDS Important for Wastegate Adjustment?

VCDS is essential for several reasons:

• Accurate Monitoring: VCDS allows you to monitor the wastegate actuator voltage, which is critical for proper adjustment.
• Adaptation: After adjusting the wastegate, VCDS is used to perform the “First Adaptation of charge pressure actuator,” ensuring the ECU (Engine Control Unit) learns the new settings.
• Diagnostic Codes: VCDS can read and clear DTCs related to the wastegate, helping diagnose issues.
• Data Logging: It allows you to log data during driving, which is useful for troubleshooting boost-related problems.

1.3. Common Wastegate Issues

Some common issues related to the wastegate include:

• Overboost: The wastegate fails to open, leading to excessive boost pressure.
• Underboost: The wastegate opens prematurely, resulting in insufficient boost pressure.
• Faulty Actuator: The wastegate actuator malfunctions, preventing proper wastegate operation.
• Sensor Issues: Problems with the boost pressure sensor or wastegate position sensor can cause incorrect readings and wastegate control.

1.4. How CAR-CODING.EDU.VN Can Help

CAR-CODING.EDU.VN provides remote automotive coding support using VCDS. Our expert technicians can remotely access your vehicle’s ECU and assist with:

• Wastegate Adjustment: Guiding you through the process of adjusting the wastegate actuator voltage.
• Adaptation: Performing the “First Adaptation of charge pressure actuator” using VCDS.
• Fault Code Diagnosis: Helping you diagnose and clear DTCs related to the wastegate.
• Data Logging and Analysis: Assisting you in logging and analyzing data to identify boost-related issues.
• ECU Programming: Providing ECU programming services to optimize engine performance and resolve wastegate-related problems.
• Activating Hidden Features: Remote activation of hidden features in the car’s electronic control units.

VCDS Wastegate Voltage Setting and Adaptation

2. Understanding Wastegate Adjustment with VCDS

Wastegate adjustment involves setting the correct voltage for the wastegate actuator. This ensures the wastegate operates correctly and the turbocharger produces the desired boost pressure.

2.1. Why is Precise Wastegate Adjustment Important?

Precise wastegate adjustment is crucial for several reasons:

• Optimal Performance: Proper adjustment ensures the turbocharger delivers the correct boost pressure for optimal engine performance.
• Engine Protection: It prevents overboost, which can damage the engine.
• Fuel Efficiency: Correct boost pressure contributes to better fuel efficiency.
• Emissions Control: Proper wastegate operation helps maintain emissions compliance.
• Drivability: It ensures smooth and predictable power delivery.

2.2. Tools Required for Wastegate Adjustment with VCDS

To adjust the wastegate with VCDS, you will need:

• VCDS Software: A licensed copy of the VCDS software from Ross-Tech.
• VAG HEX-V2 Cable: A VAG HEX-V2 cable to connect your laptop to the vehicle’s OBDII port.
• Laptop: A laptop running Windows to install and run VCDS.
• Basic Hand Tools: Wrenches and pliers for adjusting the wastegate actuator rod.
• Remote Support (Optional): Contact CAR-CODING.EDU.VN for remote assistance if you are not comfortable performing the adjustment yourself.

2.3. Step-by-Step Guide to Wastegate Adjustment with VCDS

Here is a step-by-step guide to adjusting the wastegate with VCDS:

1. Connect VCDS: Connect the VAG HEX-V2 cable to your laptop and the vehicle’s OBDII port.
2. Start VCDS: Launch the VCDS software on your laptop.
3. Select Control Module: Select the “Engine” control module (usually address 01).
4. Advanced Measuring Values: Go to “Advanced Measuring Values.”
5. Search for “Charge”: Enter “charge” in the search window to find relevant variables.
6. Select “Charge air pressure control valve uncond voltage sensor”: Select this variable to monitor the wastegate actuator voltage.
7. Adjust the Wastegate Actuator Rod:
   • Loosen the jam nut on the wastegate actuator rod.
   • Turn the actuator rod clockwise to tighten it, which lowers the voltage reading.
   • Turn the actuator rod counterclockwise to loosen it, which raises the voltage reading.
8. Monitor Voltage: Monitor the voltage reading in VCDS while adjusting the rod. Aim for a voltage around 3.6 volts (this may vary depending on the vehicle).
9. Tighten the Jam Nut: Once the voltage is correct, tighten the jam nut to secure the rod.
10. Basic Settings: Go to “Basic Settings – 04.”
11. First Adaptation of charge pressure actuator: Run the “First Adaptation of charge pressure actuator” function.
12. Verify Completion: Ensure the adaptation completes without any errors.
13. Check for DTCs: Check for any DTCs related to the wastegate and clear them if necessary.
14. Test Drive: Take the vehicle for a test drive to verify the boost pressure and overall performance.

2.4. Common Mistakes to Avoid

When adjusting the wastegate, avoid these common mistakes:

• Incorrect Voltage: Setting the voltage too high or too low.
• Skipping Adaptation: Forgetting to perform the “First Adaptation of charge pressure actuator.”
• Ignoring DTCs: Not checking and clearing DTCs after the adjustment.
• Overtightening: Overtightening the jam nut, which can damage the actuator rod.
• Improper Tools: Using the wrong tools, which can make the adjustment difficult and damage the components.
• Lack of Expertise: Attempting the adjustment without proper knowledge or experience.

VCDS Advanced Measuring Values Charge Air

3. Wastegate VCDS and Troubleshooting Common Issues

VCDS is an invaluable tool for diagnosing and troubleshooting wastegate-related issues.

3.1. Reading and Interpreting Wastegate-Related DTCs

VCDS can read DTCs that provide valuable information about wastegate problems. Here are some common DTCs and their possible causes:

• P2563 – Turbocharger Boost Control Position Sensor Circuit – Implausible Signal: This code indicates an issue with the wastegate position sensor or its circuit. It may be caused by a faulty sensor, wiring problems, or incorrect wastegate adjustment.
• P0299 – Turbocharger/Supercharger Underboost: This code suggests that the turbocharger is not producing enough boost. It could be due to a wastegate that is opening prematurely, a leak in the intake system, or a faulty turbocharger.
• P0234 – Turbocharger/Supercharger Overboost Condition: This code indicates that the turbocharger is producing excessive boost. It may be caused by a wastegate that is not opening properly, a faulty boost pressure sensor, or a problem with the ECU.
• P00AF – Turbocharger/Supercharger Boost Control “A” Circuit Open: This code suggests an open circuit in the boost control system, possibly affecting the wastegate solenoid or wiring.
• P0046 – Turbocharger Boost Control Solenoid Circuit Range/Performance: This code indicates a performance issue with the turbocharger boost control solenoid, which could affect wastegate operation.

3.2. Using VCDS for Data Logging to Diagnose Boost Problems

VCDS allows you to log data while driving, which can be extremely helpful in diagnosing boost-related issues. Here’s how to use VCDS for data logging:

1. Connect VCDS: Connect the VAG HEX-V2 cable to your laptop and the vehicle’s OBDII port.
2. Start VCDS: Launch the VCDS software on your laptop.
3. Select Control Module: Select the “Engine” control module (usually address 01).
4. Data Logging: Go to “Data Logging.”
5. Select Variables: Select the variables you want to log, including:
   • Boost pressure (actual and specified)
   • Wastegate actuator voltage
   • Engine RPM
   • Mass airflow (MAF)
   • Throttle position
6. Start Logging: Start the data logging and drive the vehicle under various conditions, including acceleration, cruising, and uphill driving.
7. Analyze Data: After logging, analyze the data to identify any anomalies in boost pressure, wastegate operation, or other relevant parameters.

3.3. Examples of Troubleshooting Scenarios

Here are a few examples of how VCDS can be used to troubleshoot wastegate-related issues:

• Scenario 1: Overboost
  • Problem: The engine is experiencing overboost, and DTC P0234 is present.
  • VCDS Steps:
    • Read DTCs: Confirm the presence of P0234.
    • Data Logging: Log boost pressure and wastegate actuator voltage during acceleration.
    • Analysis: If the boost pressure exceeds the specified value and the wastegate actuator voltage does not change, the wastegate is likely not opening.
    • Possible Solutions: Check the wastegate actuator for proper operation, inspect the vacuum lines (if applicable), and verify the wastegate linkage is not binding.
• Scenario 2: Underboost
  • Problem: The engine is experiencing underboost, and DTC P0299 is present.
  • VCDS Steps:
    • Read DTCs: Confirm the presence of P0299.
    • Data Logging: Log boost pressure, wastegate actuator voltage, and MAF during acceleration.
    • Analysis: If the boost pressure is below the specified value and the wastegate actuator voltage is low, the wastegate may be opening prematurely.
    • Possible Solutions: Check the wastegate adjustment, inspect the intake system for leaks, and verify the turbocharger is functioning properly.
• Scenario 3: Implausible Signal
  • Problem: The engine is showing a P2563 code, indicating an implausible signal from the turbocharger boost control position sensor.
  • VCDS Steps:
    • Read DTCs: Confirm the presence of P2563.
    • Advanced Measuring Values: Check the live data for the wastegate position sensor.
    • Analysis: Compare the sensor data to the specified values. If the values are out of range or erratic, the sensor may be faulty.
    • Possible Solutions: Inspect the sensor wiring, check the sensor connection, and replace the sensor if necessary.

3.4. When to Seek Professional Help

While VCDS is a powerful tool, some issues may require professional help. Consider seeking assistance from a qualified technician if:

• You are not comfortable performing the wastegate adjustment yourself.
• You are unable to diagnose the problem using VCDS.
• The problem persists after attempting basic troubleshooting steps.
• You suspect a mechanical issue with the turbocharger or wastegate.
• You require ECU programming or advanced diagnostic services.

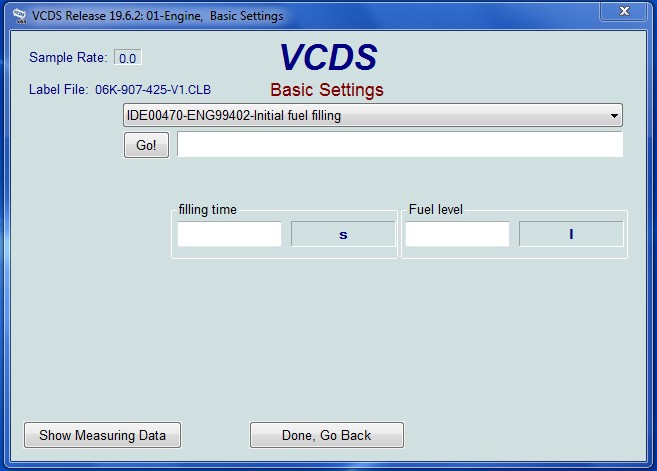

VCDS Basic Settings Initial Screen

4. Wastegate VCDS and Performance Tuning

VCDS can also be used in conjunction with performance tuning to optimize the wastegate settings for increased power and performance.

4.1. How Wastegate Adjustment Affects Performance

The wastegate setting plays a crucial role in engine performance. Adjusting the wastegate can affect:

• Boost Pressure: Increasing the boost pressure can increase power, but it can also put more stress on the engine.
• Turbo Lag: Adjusting the wastegate can affect the turbo lag, which is the time it takes for the turbocharger to spool up and produce boost.
• Throttle Response: Proper wastegate adjustment can improve throttle response, making the engine feel more responsive.
• Engine Safety: Incorrect wastegate settings can lead to overboost, which can damage the engine.

4.2. Using VCDS to Fine-Tune Wastegate Settings for Performance

VCDS can be used to fine-tune the wastegate settings for optimal performance. Here’s how:

1. Baseline Data: Log data with the stock wastegate settings to establish a baseline.
2. Adjust Wastegate: Make small adjustments to the wastegate actuator rod, either tightening it to increase boost or loosening it to decrease boost.
3. Log Data: Log data after each adjustment to see how it affects performance.
4. Analyze Data: Analyze the data to determine the optimal wastegate setting for your desired performance goals.
5. Adaptation: After finding the optimal setting, perform the “First Adaptation of charge pressure actuator” using VCDS.
6. Monitor and Adjust: Continuously monitor the performance and adjust the wastegate settings as needed.

4.3. Precautions and Best Practices

When fine-tuning the wastegate settings for performance, keep these precautions and best practices in mind:

• Small Adjustments: Make small adjustments to the wastegate actuator rod, as even small changes can have a significant impact on performance.
• Monitor Engine Parameters: Continuously monitor engine parameters, such as boost pressure, air-fuel ratio, and exhaust gas temperature, to ensure the engine is running safely.
• Professional Tuning: Consider working with a professional tuner to optimize the wastegate settings for your specific vehicle and performance goals.
• Engine Safety: Prioritize engine safety over maximum power. Overboosting can damage the engine, so it’s important to stay within safe limits.

4.4. How CAR-CODING.EDU.VN Can Assist with Performance Tuning

CAR-CODING.EDU.VN can assist with performance tuning by:

• Remote Support: Providing remote support for wastegate adjustment and adaptation.
• Data Analysis: Helping you analyze data logs to optimize wastegate settings.
• ECU Programming: Offering ECU programming services to fine-tune the engine management system for optimal performance.
• Expert Advice: Providing expert advice on wastegate settings and performance tuning strategies.

VCDS Basic Settings Pulldown Menu Options

5. Benefits of Professional Remote Assistance from CAR-CODING.EDU.VN

Seeking professional remote assistance from CAR-CODING.EDU.VN offers numerous benefits, especially when dealing with complex tasks like wastegate adjustment and ECU programming.

5.1. Expertise and Experience

Our technicians possess extensive expertise and experience in working with VCDS and various automotive systems. They can accurately diagnose problems, perform adjustments, and provide reliable solutions.

5.2. Safety and Reliability

We prioritize safety and reliability in all our services. Our remote assistance ensures that the adjustments are performed correctly, minimizing the risk of damage to your vehicle.

5.3. Convenience and Time-Saving

Remote assistance eliminates the need to visit a physical shop, saving you time and effort. Our technicians can remotely access your vehicle’s ECU and provide real-time guidance and support.

5.4. Cost-Effectiveness

Our remote services are often more cost-effective than traditional shop visits. You only pay for the specific services you need, without incurring additional costs for transportation or waiting time.

5.5. Wide Range of Vehicle Support

CAR-CODING.EDU.VN supports a wide range of vehicles, including Volkswagen, Audi, Skoda, and SEAT. Our technicians are familiar with the specific requirements and nuances of each model.

5.6. Up-to-Date Knowledge

The automotive industry is constantly evolving, with new technologies and software updates being introduced regularly. Our technicians stay up-to-date with the latest developments, ensuring they can provide the most accurate and effective solutions.

5.7. Real-Time Support

Our remote assistance provides real-time support, allowing you to ask questions and receive immediate answers. This ensures that you understand the process and can make informed decisions.

5.8. Error Prevention

Incorrect wastegate adjustments or ECU programming can lead to serious engine damage. Our expert guidance helps prevent errors and ensures that the adjustments are performed correctly.

5.9. Comprehensive Solutions

CAR-CODING.EDU.VN offers comprehensive solutions, including wastegate adjustment, adaptation, fault code diagnosis, data logging, ECU programming, and more. We can address a wide range of issues and provide tailored solutions to meet your specific needs.

5.10. Peace of Mind

By seeking professional remote assistance, you can have peace of mind knowing that your vehicle is in capable hands. Our technicians are dedicated to providing the highest level of service and ensuring your satisfaction.

6. Wastegate VCDS and Specific Vehicle Models

The process of wastegate adjustment using VCDS can vary slightly depending on the specific vehicle model. Here are some examples of how it may differ:

6.1. Volkswagen (VW)

For Volkswagen vehicles, the VCDS procedure is generally consistent across models like the Golf, Jetta, Passat, and Tiguan. However, the specific measuring blocks and adaptation channels may vary slightly depending on the engine type and year.

6.2. Audi

Audi vehicles, such as the A3, A4, A6, and Q5, also follow a similar VCDS procedure for wastegate adjustment. However, some Audi models may have additional sensors or control systems that need to be considered.

6.3. Skoda

Skoda vehicles, including the Octavia, Superb, and Kodiaq, generally use the same VCDS procedures as Volkswagen and Audi. However, some Skoda-specific features or adaptations may be present.

6.4. SEAT

SEAT vehicles, such as the Ibiza, Leon, and Ateca, also follow similar VCDS procedures for wastegate adjustment. As with Skoda, some SEAT-specific features or adaptations may be present.

6.5. Variations Based on Engine Type

The wastegate adjustment process can also vary based on the engine type. For example, diesel engines may have different boost control systems than gasoline engines. Similarly, turbocharged engines may have different wastegate configurations than supercharged engines.

6.6. Model-Specific Considerations

When adjusting the wastegate on a specific vehicle model, it’s important to consult the vehicle’s service manual or technical documentation for any model-specific considerations. This can help ensure that the adjustment is performed correctly and that no damage is done to the vehicle.

6.7. How CAR-CODING.EDU.VN Handles Model-Specific Variations

CAR-CODING.EDU.VN’s technicians are experienced in working with a wide range of vehicle models and engine types. They are familiar with the specific VCDS procedures and adaptation channels for each model, and they can provide tailored guidance and support to ensure that the wastegate adjustment is performed correctly.

7. Remote Automotive Coding Support Beyond Wastegate VCDS

CAR-CODING.EDU.VN offers a comprehensive suite of remote automotive coding support services that extend beyond wastegate VCDS adjustments.

7.1. ECU Programming

We provide ECU programming services to optimize engine performance, improve fuel efficiency, and resolve various issues. Our technicians can remotely access your vehicle’s ECU and reprogram it with updated software or custom tunes.

7.2. Clearing Fault Codes Permanently

We can help you clear fault codes permanently, ensuring that the warning lights on your dashboard are extinguished and that your vehicle is running smoothly. Our technicians can diagnose the root cause of the fault codes and provide effective solutions.

7.3. Activating Hidden Features

Many modern vehicles have hidden features that are not enabled by default. We can help you activate these features, such as cornering lights, automatic door locking, and enhanced display options.

7.4. Remote Automotive Coding Support

Our remote automotive coding support services provide real-time assistance with various coding tasks. Whether you need help with module coding, variant coding, or adaptation, our technicians are available to provide expert guidance and support.

7.5. VIN Coding

We offer VIN coding services to ensure that all the modules in your vehicle are properly configured and communicating with each other. This is especially important after replacing a module or performing a retrofit.

7.6. Variant Coding

Variant coding allows you to customize the behavior of various vehicle systems, such as the lighting, comfort features, and driver assistance systems. Our technicians can help you configure these systems to your liking.

7.7. Flashing

Flashing involves updating the software on a vehicle’s ECU or other modules. This can be done to improve performance, fix bugs, or add new features. Our technicians can perform flashing remotely, ensuring that your vehicle is running the latest software.

7.8. Adaptations

Adaptations allow you to adjust the settings of various vehicle systems to match your specific needs. For example, you can adjust the sensitivity of the parking sensors or the brightness of the interior lights. Our technicians can guide you through the adaptation process and help you configure the systems to your liking.

7.9. Retrofitting

Retrofitting involves adding new features to a vehicle that were not originally installed at the factory. This can include adding features like parking sensors, a rearview camera, or a navigation system. Our technicians can assist with the coding and programming required for retrofitting.

7.10. Diagnostic Services

We offer comprehensive diagnostic services to help you identify and resolve various issues with your vehicle. Our technicians can remotely access your vehicle’s ECU and read diagnostic trouble codes (DTCs) to pinpoint the source of the problem.

8. Future Trends in Wastegate Technology and VCDS

The field of wastegate technology and VCDS is constantly evolving, with new advancements and trends emerging regularly.

8.1. Electronic Wastegates

Electronic wastegates are becoming increasingly common in modern vehicles. These wastegates use an electric motor to control the wastegate valve, rather than a vacuum actuator. Electronic wastegates offer more precise control and faster response times.

8.2. Advanced Boost Control Strategies

Automakers are developing more advanced boost control strategies to optimize engine performance and fuel efficiency. These strategies may involve variable geometry turbochargers, multiple wastegates, and sophisticated control algorithms.

8.3. Integration with Vehicle Systems

Wastegate control is becoming increasingly integrated with other vehicle systems, such as the engine management system, transmission control system, and stability control system. This integration allows for more coordinated and efficient control of the vehicle’s performance.

8.4. Over-the-Air Updates

Over-the-air (OTA) updates are becoming more common in modern vehicles. These updates allow automakers to remotely update the software on a vehicle’s ECU and other modules, without requiring a visit to a physical shop.

8.5. VCDS Enhancements

Ross-Tech is continuously enhancing VCDS with new features and capabilities. Future versions of VCDS may include improved diagnostic tools, enhanced data logging capabilities, and support for new vehicle models and systems.

8.6. AI and Machine Learning

Artificial intelligence (AI) and machine learning are being used to develop more advanced diagnostic and troubleshooting tools. These tools can analyze data from a vehicle’s sensors and systems to identify potential problems and provide accurate solutions.

8.7. Predictive Maintenance

Predictive maintenance involves using data analytics to predict when a vehicle component is likely to fail. This allows for proactive maintenance, which can prevent costly repairs and downtime.

8.8. Cybersecurity

As vehicles become more connected and reliant on software, cybersecurity is becoming an increasingly important concern. Automakers and software developers are working to develop more secure systems to protect vehicles from cyberattacks.

8.9. Standardization

Standardization efforts are underway to develop common protocols and interfaces for automotive diagnostics and coding. This can make it easier for technicians to work on different vehicle models and systems.

8.10. Remote Diagnostics and Repair

Remote diagnostics and repair are becoming more common, allowing technicians to diagnose and fix vehicle problems remotely. This can save time and money, and it can also make it possible to repair vehicles in remote locations.

9. Wastegate VCDS: FAQs

Here are some frequently asked questions about wastegate VCDS:

9.1. Is it safe to adjust the wastegate with VCDS?

Yes, if done correctly and with proper knowledge. Incorrect adjustments can lead to engine damage. Professional assistance is recommended if you’re unsure.

9.2. How does the remote support process work with CAR-CODING.EDU.VN?

You’ll need a laptop, a VAG HEX-V2 cable, and an internet connection. Our technician will remotely access your computer and guide you through the process.

9.3. What are the costs associated with remote wastegate VCDS assistance?

Costs vary depending on the complexity of the task. Contact CAR-CODING.EDU.VN for a quote.

9.4. What types of vehicles are supported for wastegate VCDS adjustment?

We primarily support Volkswagen, Audi, Skoda, and SEAT vehicles.

9.5. Can I activate hidden features using remote VCDS support?

Yes, we offer remote activation of hidden features in your car’s electronic control units.

9.6. What equipment do I need on my end for remote VCDS support?

You’ll need a laptop running Windows, a VAG HEX-V2 cable, and a stable internet connection.

9.7. What if I encounter problems during the VCDS adjustment process?

Our technician will be available in real-time to provide assistance and troubleshoot any issues.

9.8. Can you guarantee that adjusting the wastegate will fix my boost issues?

While we can provide expert guidance, the success of the adjustment depends on the underlying cause of the boost issue.

9.9. How long does a typical remote wastegate VCDS session take?

The duration depends on the complexity of the task, but most sessions take between 1 to 2 hours.

9.10. How can I schedule a remote VCDS support session?

Contact us via Whatsapp at +1 (641) 206-8880 or visit our website at CAR-CODING.EDU.VN to schedule a session.

10. Take the Next Step with CAR-CODING.EDU.VN

Don’t let wastegate issues or complex coding challenges hold you back. CAR-CODING.EDU.VN provides the expert remote support you need to optimize your vehicle’s performance and unlock its full potential.

Contact us today to schedule a remote VCDS session and experience the CAR-CODING.EDU.VN difference:

• Address: 100 Tech Innovation Dr, Suite 500, San Jose, CA 95110, United States
• Whatsapp: +1 (641) 206-8880
• Website: CAR-CODING.EDU.VN

Let CAR-CODING.EDU.VN be your trusted partner in automotive coding and diagnostics!
