1. Understanding Headlight Range Adjustment with VCDS

Headlight range adjustment, or leuchtweitenregulierung einstellen vcds, is crucial for ensuring optimal visibility and safety while driving. Proper adjustment prevents blinding other drivers and maximizes the effectiveness of your headlights.

1.1 What is Headlight Range Adjustment?

Headlight range adjustment is the process of calibrating the vertical angle of your headlights to match the vehicle’s load and road conditions. This adjustment is typically performed using diagnostic tools like VCDS (Vag-Com Diagnostic System).

1.2 Why is Headlight Range Adjustment Important?

Properly adjusted headlights ensure:

• Optimal Visibility: Maximizes the range of illumination without blinding other drivers.
• Safety: Enhances safety by providing a clear view of the road ahead.
• Legal Compliance: Ensures that your vehicle meets legal standards for headlight alignment.

VCDS Interface for Headlight Adjustment

This image shows a VCDS interface, which is essential for coding and adjusting various car functions.

1.3 Common Issues Requiring Headlight Range Adjustment

Several factors can necessitate headlight range adjustment:

• Vehicle Load Changes: Adding passengers or cargo can alter the vehicle’s ride height, affecting headlight alignment.
• Suspension Modifications: Lowering or lifting a vehicle requires recalibration of the headlights.
• Accident Repairs: Even minor collisions can misalign headlights.
• Replacement of Headlight Units: New headlights must be properly aligned to ensure correct illumination.

2. VCDS: The Go-To Tool for Headlight Adjustment

VCDS is a powerful diagnostic tool widely used for Volkswagen, Audi, Skoda, and SEAT vehicles. It allows technicians to perform a wide range of functions, including headlight range adjustment.

2.1 What is VCDS?

VCDS (Vag-Com Diagnostic System) is a software and hardware package that allows users to diagnose, code, and program various systems in Volkswagen Audi Group (VAG) vehicles. It provides access to control modules and allows for advanced diagnostics and modifications.

2.2 Why Use VCDS for Headlight Range Adjustment?

VCDS offers several advantages for headlight adjustment:

• Precision: Provides precise control over headlight alignment.
• Comprehensive Diagnostics: Allows for identification of related issues, such as faulty level sensors.
• User-Friendly Interface: Offers a straightforward interface for performing adjustments.

2.3 Limitations of VCDS

While VCDS is powerful, it has limitations:

• Complexity: Requires technical knowledge and understanding of vehicle systems.
• Potential for Errors: Incorrect coding or adjustment can lead to issues.
• Hardware and Software Requirements: Requires a VCDS interface and compatible software.

3. Step-by-Step Guide to Headlight Range Adjustment Using VCDS

Adjusting headlight range using VCDS involves several key steps. Here’s a detailed guide:

3.1 Prerequisites

Before starting, ensure you have the following:

• VCDS Interface: A genuine VCDS interface connected to your vehicle.
• VCDS Software: The latest version of VCDS software installed on your computer.
• Level Surface: Park your vehicle on a level surface.
• Headlight Aiming Screen or Wall: A flat surface to project the headlight beams for adjustment.

3.2 Connecting to the Vehicle

1. Connect the VCDS interface to the OBD-II port in your vehicle.
2. Turn on the ignition but do not start the engine.
3. Launch the VCDS software on your computer.
4. Select the “Select Control Module” option.

3.3 Accessing the Headlight Range Control Module

1. In the “Select Control Module” screen, locate and select the headlight range control module. This is typically module 55 for headlight range control.
2. Once the module is selected, the VCDS interface will display information about the module, including its part number and software version.

3.4 Performing Basic Settings

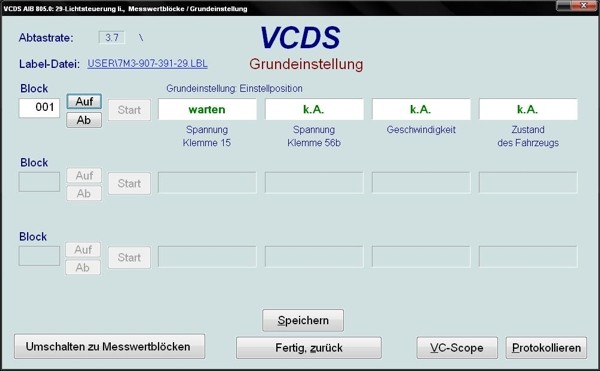

1. Click on the “Basic Settings – 04” button.
2. Enter group number 001 and click “Go!”
3. VCDS will initiate the basic setting procedure, which may take a few seconds to complete.
4. The headlights will move to their adjustment position.

3.5 Adjusting the Headlights

1. Use the manual adjustment screws on the headlight units to adjust the beam pattern.
2. Align the beam pattern according to the specifications in your vehicle’s repair manual or a headlight aiming chart.
3. The outer screws are for horizontal adjustment, and the inner screws are for vertical adjustment.

3.6 Completing the Adjustment

1. Once the headlights are properly aligned, click on “Done, Go Back” in VCDS.
2. Enter group number 002 and click “Go!”
3. Click “Done, Go Back” again to finalize the basic settings.
4. Turn off the ignition and then turn it back on to save the new settings.

Headlight Adjustment Screws

This image displays the adjustment screws used for fine-tuning headlight alignment, ensuring optimal visibility.

4. Common VCDS Coding Issues and How to Resolve Them

While VCDS is a powerful tool, users often encounter issues during the coding process. Understanding these issues and their solutions can save time and prevent frustration.

4.1 Coding Errors

Issue: Incorrect coding values can lead to malfunctions.

Solution: Double-check the coding values against a reliable source, such as a vehicle-specific forum or a coding database.

4.2 Communication Errors

Issue: VCDS may fail to communicate with the control module.

Solution: Ensure the VCDS interface is properly connected, the ignition is on, and the correct control module is selected.

4.3 Adaptation Errors

Issue: Adaptation values may not save correctly.

Solution: Verify that the adaptation procedure is followed precisely and that all prerequisites are met.

4.4 Fault Codes

Issue: New fault codes may appear after coding.

Solution: Investigate the fault codes to determine their cause. They may be related to the coding changes or indicate an underlying issue.

5. Advanced VCDS Coding Techniques

Beyond basic adjustments, VCDS can be used for advanced coding techniques to customize vehicle functions.

5.1 Activating Hidden Features

VCDS allows you to activate hidden features that are disabled by default. Examples include:

• Cornering Lights: Activate fog lights to illuminate when turning.
• Coming Home/Leaving Home Lights: Enable headlights to turn on when unlocking or locking the vehicle.
• Gauge Needle Sweep: Make the gauge needles sweep upon starting the engine.

5.2 ECU Programming

VCDS can be used for ECU programming, which involves updating or modifying the engine control unit’s software.

5.3 Variant Coding

Variant coding allows you to change the vehicle’s configuration to match specific options or regions. This is useful when retrofitting components or adapting the vehicle to different markets.

6. The Role of Remote Automotive Coding Support

For those who lack the expertise or confidence to perform VCDS coding themselves, remote automotive coding support offers a valuable solution.

6.1 What is Remote Automotive Coding Support?

Remote automotive coding support involves connecting with a skilled technician who can remotely access your vehicle’s diagnostic system and perform coding changes on your behalf.

6.2 Benefits of Remote Automotive Coding Support

• Expertise: Access to experienced technicians who are knowledgeable about VCDS coding.
• Safety: Reduces the risk of errors and potential damage to your vehicle.
• Convenience: Coding can be performed remotely, saving time and effort.
• Support: Provides guidance and support throughout the coding process.

6.3 How CAR-CODING.EDU.VN Can Help

CAR-CODING.EDU.VN offers professional remote automotive coding support for a wide range of vehicles. Our services include:

• Headlight Range Adjustment: Ensuring your headlights are properly aligned for optimal visibility.
• Activating Hidden Features: Unlocking hidden features to customize your vehicle.
• ECU Programming: Updating and modifying ECU software.
• Fault Code Clearing: Diagnosing and clearing fault codes.

VCDS Software Interface

This image illustrates the VCDS software interface, highlighting its capabilities in vehicle diagnostics and coding.

7. Understanding the Leuchtweitenregulierung System

The leuchtweitenregulierung system, or headlight range control system, is responsible for automatically adjusting the height of the headlights based on the vehicle’s load and driving conditions.

7.1 Components of the System

The system typically consists of:

• Headlight Range Control Module: This module monitors vehicle conditions and controls the headlight motors.
• Level Sensors: These sensors measure the ride height of the vehicle.
• Headlight Motors: These motors adjust the vertical angle of the headlights.

7.2 How the System Works

1. The level sensors measure the ride height of the vehicle at the front and rear axles.
2. The sensors send this information to the headlight range control module.
3. The control module calculates the appropriate headlight angle based on the sensor data.
4. The control module sends signals to the headlight motors, which adjust the headlights accordingly.

7.3 Troubleshooting the System

Common issues with the system include:

• Faulty Level Sensors: These can cause incorrect headlight adjustment.
• Faulty Headlight Motors: These can prevent the headlights from adjusting properly.
• Wiring Issues: Damaged or corroded wiring can disrupt the system’s operation.

8. Clearing Fault Codes Related to Leuchtweitenregulierung

Fault codes related to the leuchtweitenregulierung system can indicate various issues, from sensor failures to motor malfunctions. Clearing these codes is essential for restoring proper headlight operation.

8.1 Identifying Fault Codes

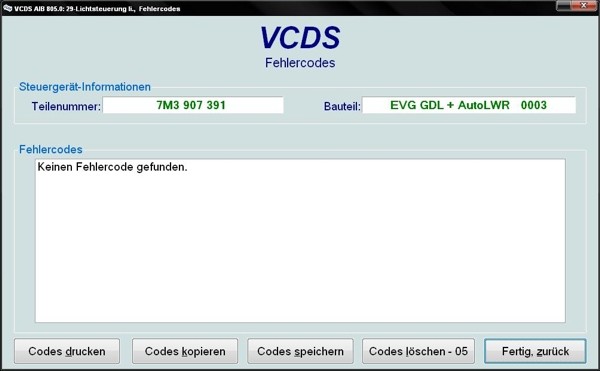

Use VCDS to scan for fault codes in the headlight range control module. Common fault codes include:

• 01534 – Headlight Range Control: Malfunction
• 00496 – Vehicle Level Sensor: Front
• 00497 – Vehicle Level Sensor: Rear

8.2 Clearing Fault Codes with VCDS

1. Connect to the vehicle using VCDS.
2. Select the headlight range control module.
3. Click on the “Fault Codes – 02” button.
4. Review the fault codes and make a note of them.
5. Click on the “Clear Codes – 05” button to clear the fault codes.
6. After clearing the codes, rescan for fault codes to see if any reappear.

8.3 Addressing Underlying Issues

If fault codes reappear after clearing them, it indicates an underlying issue that needs to be addressed. This may involve replacing faulty sensors, repairing wiring, or replacing the headlight motors.

9. Coding Leuchtweitenregulierung After Component Replacement

When replacing components of the leuchtweitenregulierung system, such as the control module or level sensors, coding may be required to ensure proper operation.

9.1 Coding the Control Module

1. Connect to the vehicle using VCDS.
2. Select the headlight range control module.
3. Click on the “Coding – 07” button.
4. Enter the correct coding value for your vehicle. This value can be found in the vehicle’s repair manual or a coding database.
5. Click “Do It!” to save the coding.

9.2 Adapting the Level Sensors

1. Connect to the vehicle using VCDS.
2. Select the headlight range control module.
3. Click on the “Basic Settings – 04” button.
4. Enter group number 001 and click “Go!”
5. Follow the on-screen instructions to adapt the level sensors.

9.3 Verifying Proper Operation

After coding, verify that the leuchtweitenregulierung system is functioning properly by observing the headlight adjustment as the vehicle’s load changes.

10. Safety Precautions When Working with VCDS and Headlight Systems

Working with VCDS and headlight systems involves certain safety precautions to prevent injury and damage to your vehicle.

10.1 Disconnect the Battery

Before working on electrical components, disconnect the negative terminal of the battery to prevent electrical shock.

10.2 Use Proper Tools

Use the correct tools for the job to avoid damaging components.

10.3 Follow Instructions Carefully

Follow the instructions in the vehicle’s repair manual and the VCDS software carefully to avoid errors.

10.4 Seek Professional Help

If you are not comfortable working with electrical systems or using VCDS, seek professional help from a qualified technician.

11. Benefits of Properly Adjusted Headlights

Properly adjusted headlights offer numerous benefits, including enhanced safety, improved visibility, and legal compliance.

11.1 Enhanced Safety

Properly aligned headlights provide a clear view of the road ahead, allowing you to react quickly to hazards and avoid accidents.

11.2 Improved Visibility

Well-adjusted headlights maximize the range of illumination, making it easier to see objects in the dark.

11.3 Legal Compliance

Many jurisdictions have laws regulating headlight alignment. Properly adjusted headlights ensure that your vehicle meets these legal standards.

This image demonstrates the use of VCDS for diagnosing and adjusting headlight settings, essential for optimal performance.

12. Headlight Range Adjustment for Different Vehicle Models

The process for headlight range adjustment can vary depending on the vehicle model. Here are some general guidelines for different vehicle types:

12.1 Volkswagen

Volkswagen models typically use VCDS for headlight range adjustment. The control module is usually located in the central electrics module.

12.2 Audi

Audi vehicles also rely on VCDS for headlight adjustment. The control module may be integrated into the headlight units themselves.

12.3 Skoda

Skoda models follow a similar procedure to Volkswagen vehicles. The control module is often found in the central electrics module.

12.4 SEAT

SEAT vehicles also use VCDS for headlight adjustment. The control module location is typically in the central electrics module.

13. Advanced Diagnostic Functions with VCDS

VCDS offers advanced diagnostic functions that can help identify and resolve issues with various vehicle systems.

13.1 Measuring Blocks

Measuring blocks allow you to view live data from sensors and other components. This can be useful for diagnosing issues with the leuchtweitenregulierung system.

13.2 Output Tests

Output tests allow you to activate various components to verify their operation. This can be helpful for testing the headlight motors.

13.3 Adaptation Channels

Adaptation channels allow you to adjust the values of various settings. This can be useful for fine-tuning the leuchtweitenregulierung system.

14. Headlight Types and Adjustment Considerations

Different types of headlights, such as halogen, xenon, and LED, have unique adjustment considerations.

14.1 Halogen Headlights

Halogen headlights are the most common type. They are relatively easy to adjust and maintain.

14.2 Xenon Headlights

Xenon headlights produce a brighter, more focused beam. They often require automatic leveling systems.

14.3 LED Headlights

LED headlights are energy-efficient and long-lasting. They may require specialized tools for adjustment.

15. Choosing the Right VCDS Interface

Selecting the correct VCDS interface is crucial for ensuring compatibility with your vehicle.

15.1 Genuine VCDS Interfaces

Genuine VCDS interfaces are recommended for their reliability and full functionality.

15.2 Aftermarket Interfaces

Aftermarket interfaces may be cheaper but can be unreliable and may not support all VCDS functions.

15.3 Interface Compatibility

Ensure that the VCDS interface is compatible with your vehicle’s make, model, and year.

16. Case Studies: Successful Leuchtweitenregulierung Adjustments

Real-world examples demonstrate the effectiveness of VCDS and remote support in resolving headlight range issues.

16.1 Case Study 1: Volkswagen Golf

A Volkswagen Golf owner experienced issues with headlight alignment after installing aftermarket suspension components. Using VCDS and remote support from CAR-CODING.EDU.VN, the headlights were properly adjusted, restoring optimal visibility.

16.2 Case Study 2: Audi A4

An Audi A4 owner encountered fault codes related to the leuchtweitenregulierung system. With remote assistance from CAR-CODING.EDU.VN, the faulty sensor was identified and replaced, and the system was recoded using VCDS.

16.3 Case Study 3: Skoda Octavia

A Skoda Octavia owner had difficulty activating the cornering light feature. Through remote coding support from CAR-CODING.EDU.VN and VCDS, the feature was successfully enabled, enhancing the vehicle’s safety.

17. Maintaining Your Headlight System

Proper maintenance is essential for ensuring the long-term performance of your headlight system.

17.1 Regular Inspections

Inspect your headlights regularly for damage and proper alignment.

17.2 Cleaning Headlights

Clean your headlights regularly to remove dirt and debris that can reduce their brightness.

17.3 Replacing Bulbs

Replace headlight bulbs as needed to maintain optimal illumination.

18. The Future of Automotive Coding

Automotive coding is constantly evolving with the introduction of new technologies and vehicle systems.

18.1 Over-the-Air Updates

Over-the-air updates are becoming increasingly common, allowing manufacturers to update vehicle software remotely.

18.2 Artificial Intelligence

Artificial intelligence is being used to enhance diagnostic capabilities and automate coding processes.

18.3 Cybersecurity

Cybersecurity is a growing concern in the automotive industry, with measures being taken to protect vehicle systems from hacking.

19. Frequently Asked Questions (FAQs) About Headlight Range Adjustment with VCDS

Here are some frequently asked questions about headlight range adjustment with VCDS:

19.1 Is it Safe to Perform Headlight Range Adjustment with VCDS?

Yes, if done correctly. Following instructions carefully and having a good understanding of VCDS is crucial. Remote support from CAR-CODING.EDU.VN can ensure a safe and successful adjustment.

19.2 What is the Process for Remote Support?

The process involves connecting with a CAR-CODING.EDU.VN technician, granting them remote access to your vehicle’s diagnostic system, and allowing them to perform the necessary coding changes.

19.3 How Much Does Remote Support Cost?

The cost of remote support varies depending on the complexity of the task. Contact CAR-CODING.EDU.VN for a quote.

19.4 What Types of Vehicles and Features are Supported?

CAR-CODING.EDU.VN supports a wide range of vehicles and features, including headlight range adjustment, activating hidden features, and ECU programming.

19.5 What Equipment is Needed for Remote Support?

You will need a VCDS interface, a computer with an internet connection, and the VCDS software.

19.6 How Can I Ensure the Safety of My Vehicle During Remote Coding?

Choose a reputable provider like CAR-CODING.EDU.VN, which has experienced technicians and a proven track record of safe coding practices.

19.7 What Happens if Something Goes Wrong During Coding?

CAR-CODING.EDU.VN technicians are trained to handle potential issues and can revert changes if necessary.

19.8 Can VCDS be Used to Adjust Headlights on All Vehicles?

No, VCDS is primarily used for Volkswagen, Audi, Skoda, and SEAT vehicles. Other vehicles may require different diagnostic tools.

19.9 How Often Should Headlight Range Adjustment be Performed?

Headlight range adjustment should be performed whenever the vehicle’s load changes significantly or after suspension modifications.

19.10 Where Can I Find More Information About VCDS Coding?

You can find more information about VCDS coding on the Ross-Tech website and in vehicle-specific forums.

20. Contact CAR-CODING.EDU.VN for Expert Assistance

Don’t struggle with complex car coding tasks. Contact CAR-CODING.EDU.VN for expert remote automotive coding support. Our skilled technicians can help you with leuchtweitenregulierung einstellen vcds, ECU programming, activating hidden features, and more.

20.1 How to Reach Us

• US Office: 100 Tech Innovation Dr, Suite 500, San Jose, CA 95110, United States
• WhatsApp: +1 (641) 206-8880
• Website: CAR-CODING.EDU.VN

20.2 Why Choose CAR-CODING.EDU.VN?

• Experienced Technicians: Our technicians have extensive knowledge of VCDS coding.
• Safe and Reliable Service: We follow best practices to ensure the safety of your vehicle.
• Convenient Remote Support: Get coding assistance from the comfort of your own garage.
• Affordable Pricing: Our services are competitively priced.
• Wide Range of Services: We offer a comprehensive range of coding services for various vehicles.

Ready to get started? Contact CAR-CODING.EDU.VN today for expert remote automotive coding support and ensure your headlights are perfectly aligned for optimal safety and visibility!
